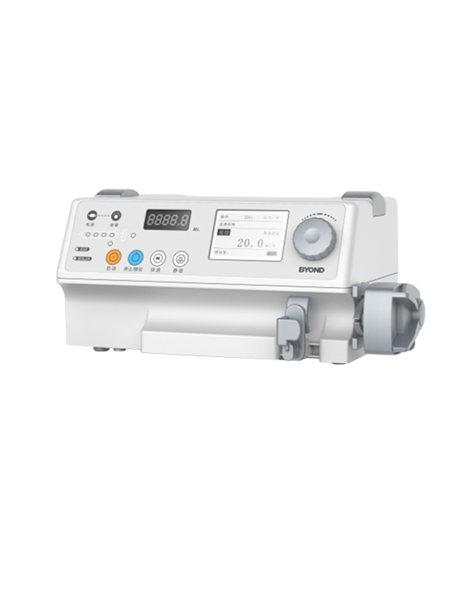

BYZ-810 Series Syringe Pumps

Both belong to the BYZ-810 series and share the same Medical Device Registration Certificate. The BYZ-810 is a single-channel model that drives one syringe at a time and can be stacked with additional units to expand channels; the BYZ-810T is a dual-channel model with 2 syringe channels integrated in the housing, which can run independently or simultaneously and can be freely split and combined into 2 - 8 channels. For single-department, single-drug infusion, the 810 is more economical; for scenarios requiring simultaneous infusion of two drugs or where bedside space is limited, the 810T saves more space.

Simple fixed-rate mode: only the rate needs to be set and infusion starts with one key, suitable for routine constant-rate drug delivery. Time-volume mode: set the time and fluid volume and the system automatically calculates the rate and injects, suitable for quantified dosing by treatment course. Body weight dose mode: after setting the drug amount, body weight, fluid volume, and dose, the system automatically calculates the rate, suitable for departments that dose in μg/kg/min or mg/kg/h (such as ICU, anesthesia, and pediatrics).

It supports 10 ml, 20 ml, 30 ml, and 50 ml syringes and provides comprehensive syringe brand and specification calibration technology, compatible with syringes of all brands. No dedicated consumables are required, so hospitals can continue using their existing qualified syringes and reduce long-term costs.

Mechanical accuracy within ±2% and flow rate accuracy within ±3%. The device controls the flow rate and total volume through uniform advancement of the plunger and is equipped with multi-level occlusion pressure detection. It is more stable than manual injection and suitable for clinical scenarios requiring long-term micro-volume, constant-rate drug delivery.

KVO (keep vein open) automatically maintains the line at a low rate after injection is completed, preventing blood reflux and line blockage. The volume limit function allows the required drug amount to be preset; when the set amount is reached, the machine stops automatically and switches to KVO. Together they reduce the need for manual supervision and prevent over-infusion and line blockage.

It supports three power modes: mains (AC) power, built-in rechargeable battery, and vehicle 12 V power. The power specification is 100 - 240 VAC, 50 - 60 Hz, with a built-in 11.1 V rechargeable battery pack. When mains power is interrupted, it automatically switches to the built-in battery to continue injection, suitable for maintaining continuous drug delivery during transport and sudden power outages.

It provides voice, text, and audible-visual alarms covering drug nearly empty, injection completed, set dose completed, injection occlusion, syringe detached, incorrect installation, rate setting error, AC power disconnected, and low battery. The alarm volume is adjustable and can be set to a suitable level for the ward environment.

Yes. The BYZ-810 single-channel model supports stacking of multiple units, effectively saving space, and a combination of several units enables multi-drug combination infusion, suitable for departments whose medication regimens require flexible expansion.

Different drugs and IV sets tolerate occlusion pressure differently. Multi-level adjustment allows the device to adapt to different clinical scenarios while ensuring safe alarms, avoiding frequent false alarms that interrupt infusion, and triggering an alarm in time in case of genuine occlusion, making pressure detection more precise.

The BYZ-810 Medical Single-Channel Micro Syringe Pump is a Class II Medical Device with Medical Device Registration Certificate No. 湘械注准20192140076, supplied directly by Olsmed Medical. Registration certificates and qualification documents required for hospital tenders and procurement can be obtained from Olsmed Medical, which also provides full lifecycle service including installation training, repair and maintenance, and spare parts supply.
