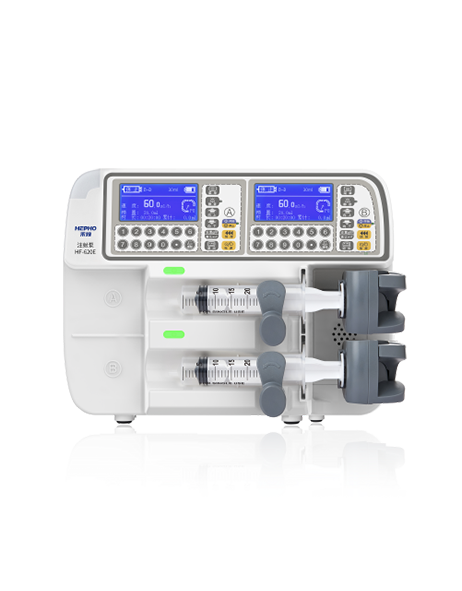

Dual Channel Injection Pump HF-620A

The HF-620A integrates 2 infusion channels in one device, and the two channels can run independently or simultaneously, allowing combined infusion of two drugs on a single device, saving bedside space and the number of devices purchased. It is suitable for departments such as the ICU, emergency department and operating room that need to infuse multiple drugs at the same time.

Yes. Each channel independently sets the flow rate, fluid volume, time or drug dose by body weight parameters without interfering with the other; the two channels can also be started simultaneously as clinically required for synchronized or staggered administration.

Constant rate mode: routine administration at a constant rate; time/total volume mode: the rate is calculated automatically from the set time and total volume; drug dose by body weight mode: the dose is calculated according to body weight; micro mode: low-speed, low-dose maintenance; programmable mode: stepped variable-rate infusion according to a preset program. The neonatal mode is particularly suitable for the neonatology department.

The infusion error is ≤ ±2%, the flow rate range is 0.10~1500 ml/h with a flow rate increment of 0.01 ml/h, and the time setting range is 1 second ~ 99 hours 59 minutes 59 seconds; the total volume and flow rate can be modified during infusion.

It supports automatic recognition of 5~60ml syringes and has parameters for more than 20 syringe brands built in; additional brands can be added, and after calibration all syringe brands are supported. No dedicated consumables are required.

The built-in 2600mAh lithium battery provides over 7 hours of simultaneous use of both channels, meeting the need for continuous administration during intra-hospital transport and sudden power failures without interrupting treatment to change batteries.

Occlusion detection uses a dedicated pressure sensor with a range of 20~150 kPa and 8-level adjustable sensitivity, and the pressure value is displayed dynamically; the automatic pressure release function releases pressure automatically when line pressure is too high, reducing the effect of high pressure on the line and the patient and adapting to different drugs and line characteristics.

The device has a large display with 8-level adjustable brightness and uses a physical numeric keypad (0~9) for input, allowing accurate operation even while wearing gloves. Parameters and operating status are clearly shown on the interface; no touchscreen is needed, avoiding accidental touches.

IPX4 means the device is protected against splashing water from all directions; for daily cleaning, simply wipe the housing with a damp cloth moistened with a neutral detergent. Avoid direct spraying or immersion and strongly acidic or alkaline disinfectants, and take care to prevent liquid from entering the control panel and the gaps around the keys. Before cleaning, switch off the power and remove the syringe.

The Hepho Dual-Channel Syringe Pump HF-620A is a Class II Medical Device with Medical Device Registration Certificate No. 粤械注准20192141164, supplied directly from the manufacturer by Olsmed Medical. Registration certificates and qualification documents required for hospital tenders and procurement can be obtained from Olsmed Medical, which also provides full lifecycle service including installation training, repair and maintenance, and spare parts supply.
