L30i-VET Veterinary Ultrasound | Pet & Livestock

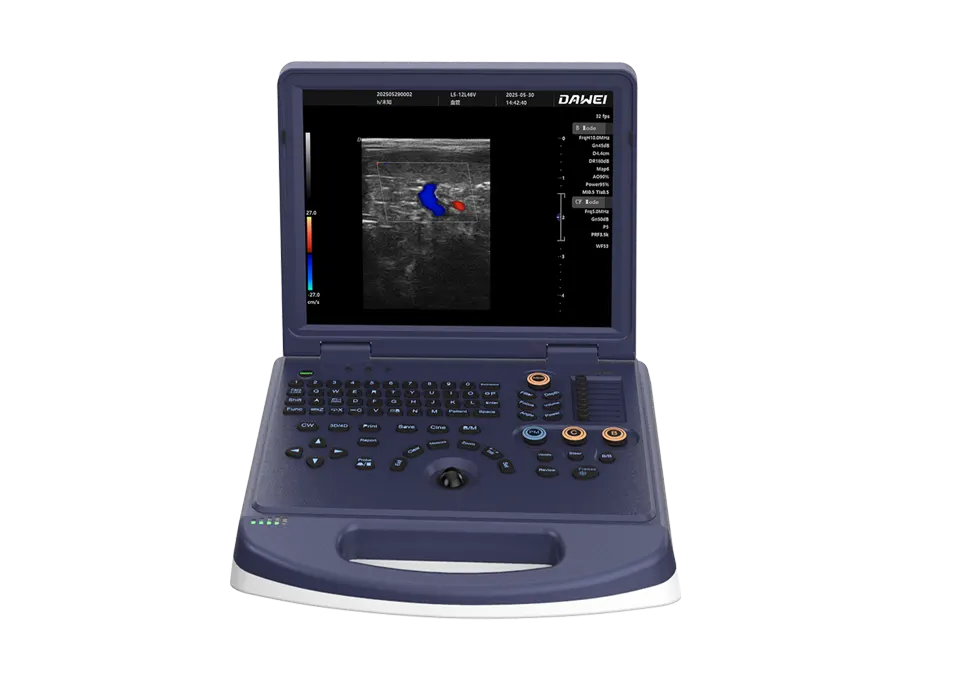

High-performance hardware architecture

Powered by the Windows 10 platform for faster ultrasound operation, higher data-processing capability and smoother human-machine interaction.

Optimal examination conditions are preset for different organs, reducing manual adjustment during scanning as well as the need for external and combined adjustments.

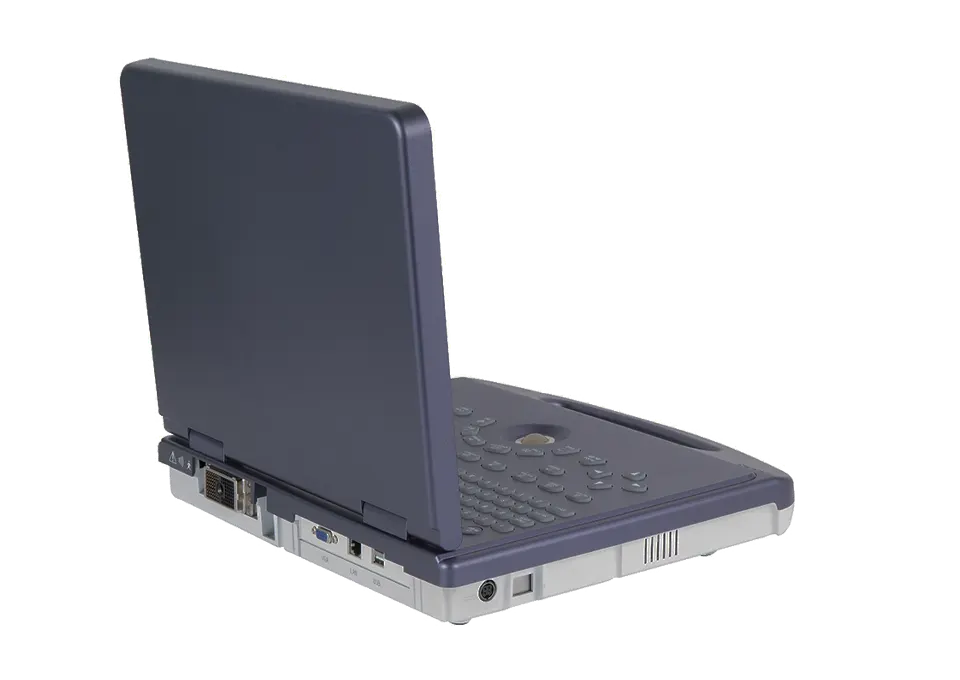

Humanized engineering design

Outstanding hardware, quality clinical application, advanced technology.

Adjustable display angle, comfortable keyboard feel, rich external interfaces and HDMI output, in an elegant and stylish design.

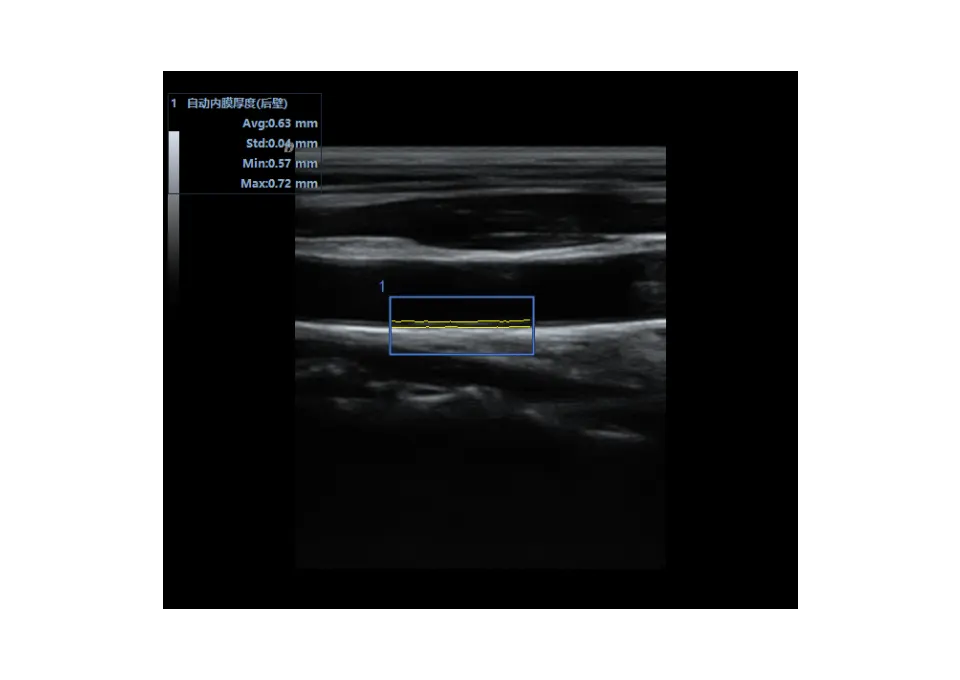

Automatic IMT measurement

The automatic intima-media thickness function recognizes the vascular intima-media automatically and measures its thickness.

It also provides an intima-media thickness measurement report, delivering more accurate and efficient information for vascular-related disease assessment.

Product data

Technical specifications

Key specifications and configuration details for Veterinary Color Doppler Ultrasound L30i-VET

Product Type: Notebook portable veterinary color Doppler ultrasound diagnostic system
Operating Platform: In-house developed "Yunhai" ultrasound operating platform with the Windows 10 operating system, delivering fast processing and smooth human-machine interaction
Display: 15-inch high-definition LCD display supporting a 180° wide-angle tilt adjustment for multi-angle clinical observation
Video Output: Supports an HDMI video output interface
Imaging Modes: B-mode, color Doppler (CFM), PW spectral Doppler, and power Doppler
Advanced Imaging: Supports BC dual real-time imaging, tissue harmonic imaging (THI), and spatial compounding to optimize organ blood flow imaging
Signature Measurement: Automatic IMT (intima-media thickness) measurement, which automatically identifies and measures vascular intima-media thickness and can output a measurement report for the assessment of vascular diseases
Probe Options: Configurable with micro-convex, linear, convex, and other probes to perform abdominal, cardiac, vascular, and urogenital examinations, suitable for both small animals such as dogs and cats and large animals
Examination Presets: Built-in multi-species examination presets that automatically optimize image parameters when called up, reducing manual adjustment and improving veterinary examination efficiency
Power & Battery Life: Built-in high-capacity rechargeable lithium battery enabling prolonged scanning away from the mains; AC mains power is also supported, suitable for consultation room use and mobile house-call examinations
Body Protection: Full-body protective design that resists liquid splashes and prevents hair from being drawn in; the housing can be wiped and disinfected with disinfectant
Structure: Portable notebook form factor with a handle design for easy carrying and transport
External Interfaces: Equipped with rich external interfaces including USB 3.0 and HDMI for fast export of images and reports, and support for connecting external peripherals to expand functionality
Image Storage & Playback: Supports storage and playback of static images and dynamic cine loops; scanned images can be saved for case review and the generation of diagnostic reports
Target Animals & Clinical Use: Suitable for large and small animals such as dogs, cats, cattle, sheep, and horses; performs ultrasound diagnosis of abdominal organs, the heart, blood vessels, pregnancy, and the urinary system, and can be used in veterinary hospitals, animal clinics, and livestock institutions
Operation & Interface: Full keyboard plus trackball operation with a comfortable key feel; supports multilingual interfaces including Chinese and English, and the lightweight body is convenient to carry on house calls

FAQ

Frequently asked questions about Veterinary Color Doppler Ultrasound L30i-VET

Answers to common questions about product selection, use, and support.

What type of ultrasound is the L30i-VET, and what are its main advantages?

It is a notebook-style veterinary color Doppler ultrasound system, not merely a conventional grayscale B-mode scanner, and can display blood flow signals; it is equipped with Windows 10 and the in-house developed Yunhai platform, features excellent image algorithms and automatic IMT measurement, and has a fully protective body, suiting both consultation room use and house calls.

What is the use of automatic IMT intima-media measurement?

The device automatically identifies the vessel wall, automatically calculates the vascular intima-media thickness, and directly outputs a measurement report, eliminating manual point-based measurement and improving the efficiency and consistency of diagnosing vascular diseases.

Can the machine be used for house calls, and how is the battery life?

A built-in high-capacity lithium battery supports scanning away from the mains; the portable notebook form factor with a carrying handle is suitable for house calls; high-speed interfaces can export case images and reports.

What is the clinical value of the BC dual real-time imaging mode?

The B-mode grayscale anatomical image and the color flow Doppler image are displayed simultaneously in real time, allowing organ anatomy and blood flow distribution to be viewed at the same time, making the assessment of blood supply to organs such as the liver, spleen, and abdominal aorta more intuitive.

What is the practical significance of the device's protective design?

Veterinary clinical environments contain a lot of liquids and animal hair; the machine resists splashes and prevents hair from being drawn in, and the housing can be wiped with disinfectant, reducing the device failure rate and facilitating routine disinfection and maintenance in animal treatment environments.

Which probes are supported, and which animal examinations can be performed?

It can be equipped with micro-convex, linear, and convex probes; it covers small animals such as dogs, cats, and small pets as well as large animals such as cattle, sheep, and horses, and can perform ultrasound examinations of the abdomen, heart, blood vessels, pregnancy, and the urogenital system.
